Single stage single suction centrifugal pump

Performance parameter

Model: SNA/SNB

Flow rate: 2-2600m ³/h

Lift: 2-300m

Speed: 1450/2950r/min

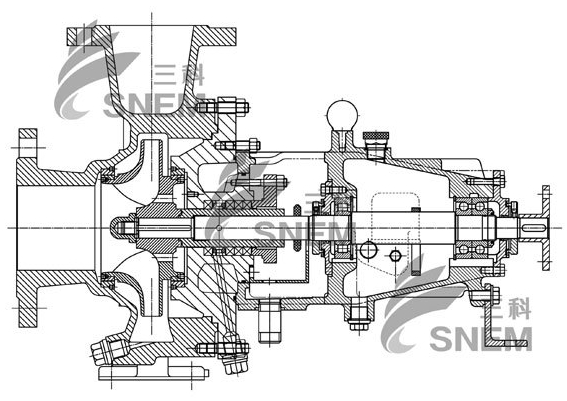

Structural characteristics

This series of products features a horizontal single-stage single suction centrifugal pump with a pull-out design that complies with API610 standards. Inhale horizontally at the shaft end and exhale vertically. SNA serves as the central support (OH2), while SNB serves as the base support (OH1).

This series of pump inlet and outlet flanges can withstand large pipe load and are suitable for conveying clean, slightly polluted, chemically neutral, and corrosive media. They are widely used in fields such as energy, petrochemicals, environmental protection, and ships. The working pressure can reach 7MPa.

The pump is supported by rolling bearings and lubricated by immersion; The shaft seal is a packing or mechanical seal.
