Single stage double suction split pump

Performance parameter

Model: SSH

Lift: 10-225m

Speed: 1450/2950r/min

Structural characteristics

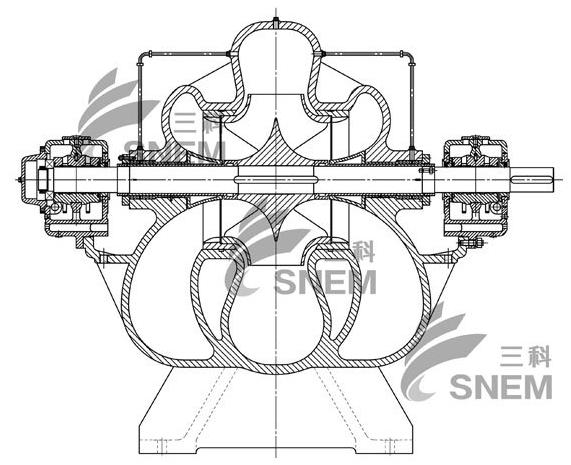

This series of products is a single-stage double suction medium open pump, with API defined type: BB1.

This series of pumps features single-stage double suction impellers with self balancing axial force. The pump split surface is on the axis line, and the inlet and outlet are located on the pump body below the split surface, so there is no need to disassemble it during maintenance.

There are two ways to support the rotor: one is through rolling bearings, lubricated with grease or thin oil; The second is sliding bearings, lubricated with thin oil. The shaft seal can be equipped with packing or mechanical seal.
