Vertical pump

Performance parameter

Model: HL

Flow rate: 600-65000m3/h

Lift: 6-100m

Speed: 245-1475r/min

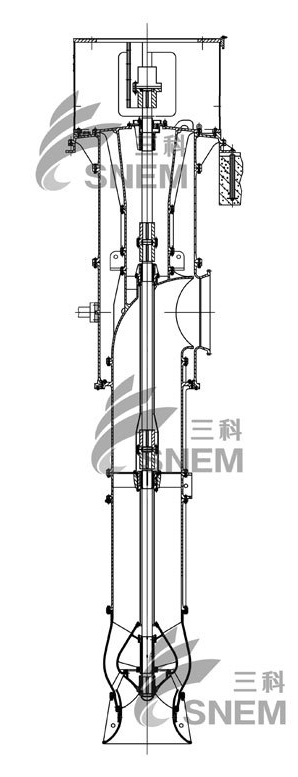

Structural characteristics

Single or two-stage inclined flow/centrifugal impeller+guide vane structure, single/double foundation vertical installation, single/double shell structure optional. Wet pit design, the pump inlet horn pipe sucks in the medium from the water tank, and the outlet can be adjusted in position as needed. Freshwater and seawater with a medium temperature not exceeding 60 ℃.

The pump adopts water lubricated bearings. Multiple materials including rubber, Sailong, and A3 can be selected. The shaft seal is a packing or mechanical seal.

The axial force of the rotor is generally borne by the motor thrust bearing, and pumps with a diameter of less than 1000mm can be designed with built-in thrust bearings.

This series is particularly suitable for use as circulating water pumps for nuclear/thermal power units, LNG seawater pumps, and can also be used for other industrial and urban water supply, salt field brine transportation, etc. When the usage conditions are harsh, materials such as austenitic stainless steel and duplex stainless steel can be selected.
